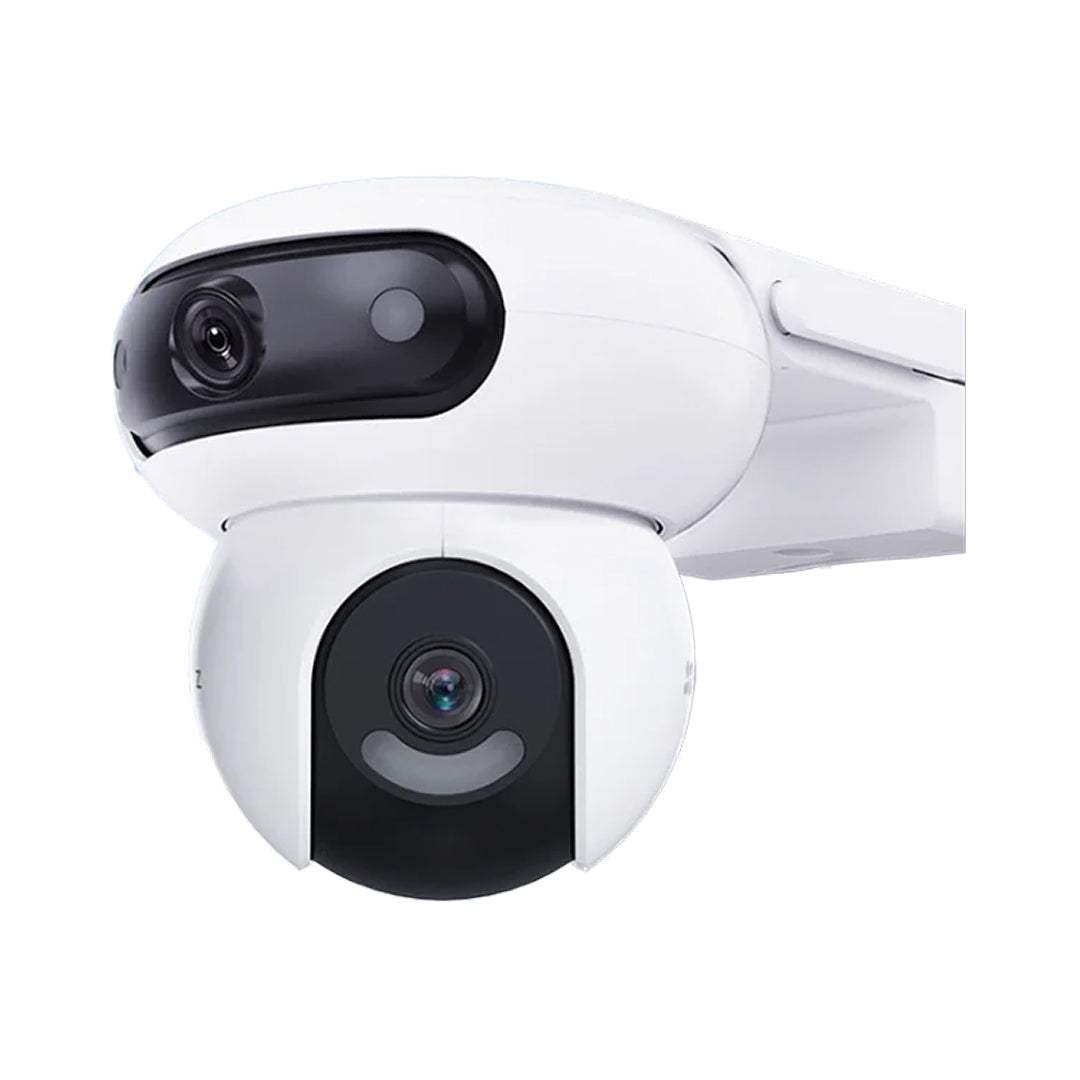

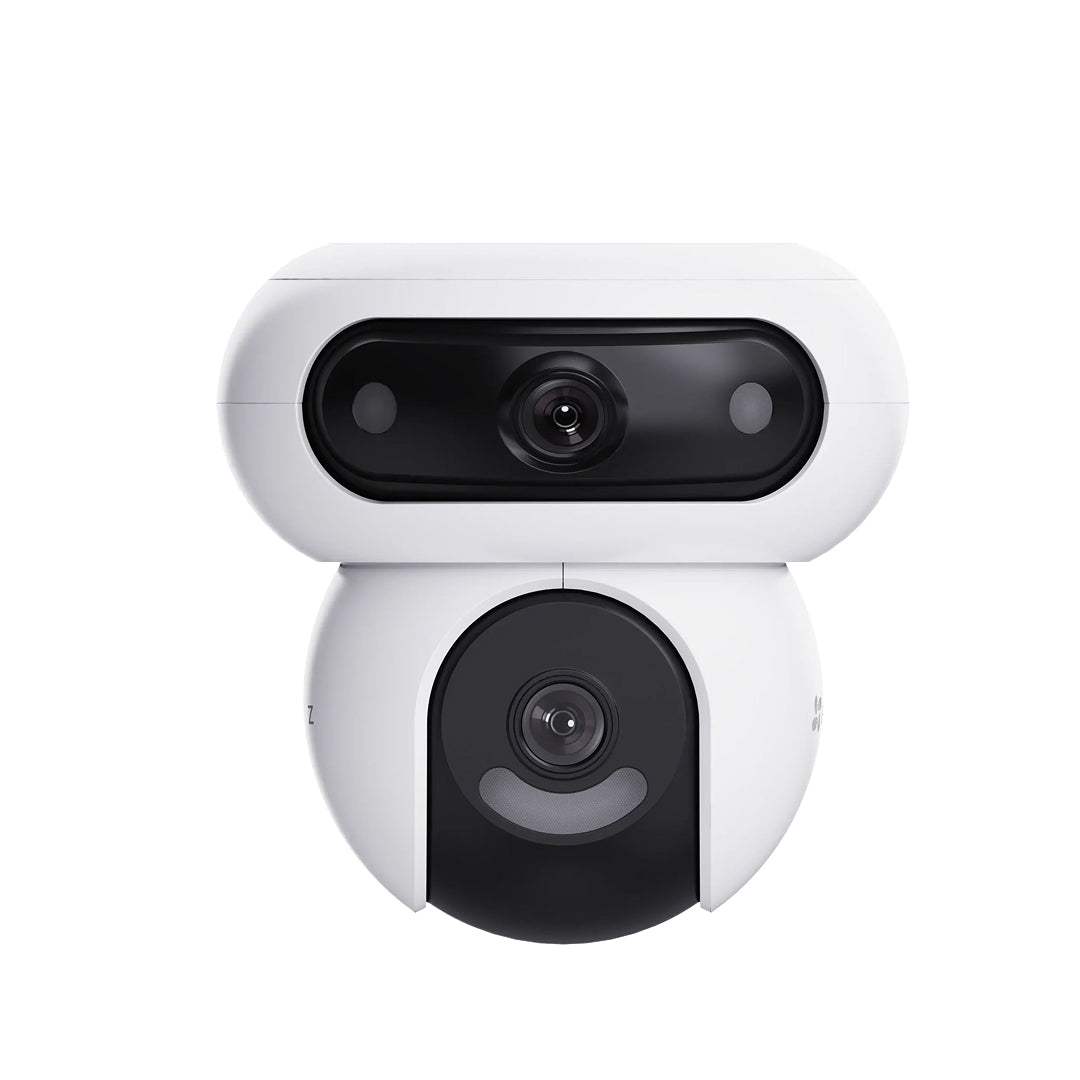

Ezviz H90 Dual 4MP+4MP (2K+) Dual-Lens Pan & Tilt Wi-Fi Camera

Name: Ezviz H90 Dual 4MP+4MP (2K+) Dual-Lens Pan & Tilt Wi-Fi Camera
Brand: Ezviz
SKU: BS9467
Price: 95000.000 IQD
Availability: InStock

95,000 IQD 110,000 IQD

Save 13%

Product Description

Another innovation in the EZVIZ star range of dual-lens cameras, the H90 Dual is taking 360-degree protection to a whole new level by combining two rotating lenses in a single housing. Its orb-shaped camera inherits the beloved features from EZVIZ’s pan/tilt series, and its UFO-shaped top camera adds another sweeping, ultra-wide field of view to leave no corner unwatched. The two boast additional smartness by responding to each other to complete interlinked detection and view change. In short, the H90 Dual provides unparalleled vision and efficiency for large-area monitoring

Let the H90 Dual enhance your sight to see both far and nearby, so you don’t skip anything important. You can adjust the upper lens to keep a continuous watch on the big picture of a key area, and use the lower lens to secure what matters to you most.

Fully-automated rotation for extended peace of mind

On set time intervals, the lower lens can complete rotational check-ups to eliminate blind spots. You can customize patrol routes for tailored focuses, or simply ask it to complete a full-circle spin.

Specifications
Model	CS-H90-R100-8H44WKFL
Camera
Image Sensor	1/3" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
PT Angle	Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle ) Bottom Lens: Pan: 324°, Tilt: 90°
Minimum Illumination	0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount	M12
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
WDR	Digital WDR
IR Night Vision	30 m (98 ft)
Color Night Vision	Up to 40 m (131 ft) when two lenses point in the same direction
Video & Audio
Max Resolution	2K+ (2560 × 1440)
Frame Rate	Self-adaptive during network transmission
Video Compression	H.265 / H.264
H.265 Type	Main Profile
Video Bit Rate	Quad HD; Full HD; Standard adaptive bit rate
Audio Bit Rate	Self-Adaptive
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz
Security	WPA-PSK/WPA2-PSK
Transmission Rate	11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing	AP paring
Protocol	EZVIZ cloud proprietary protocol
Interface Protocol	EZVIZ cloud proprietary protocol
Wired Network	RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Functions
Smart Alarm	AI-powered human shape detection AI-powered vehicle shape detection Motion detection
Auto Tracking	Supports
Customized Alert Area	Supports
Two-way Talk	Supports
Preset Locations	Supports
General Function	Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage	Supports microSD card (max. 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (subscription required)
General
Operating Conditions	-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade	Weatherproof Design
Power Supply	IP65 + 2h rainstorm
Power Consumption	MAX. 18W
Dimensions	224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch)
Packaging Dimensions	255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch)
Weight	Net weight: 723 g (25.51 oz) With Package: 1203 g (42.43 oz)
In the box
In the box	- H90 Dual 2K+ Camera
	- Power Adapter
	- Drill Template
	- Waterproof Kit
	- Screw Kit
	- Regulatory Information × 2
	- Quick Start Guide
Certifications
Certifications	CE / UL / WEEE / RoHS / REACH
