Product Description

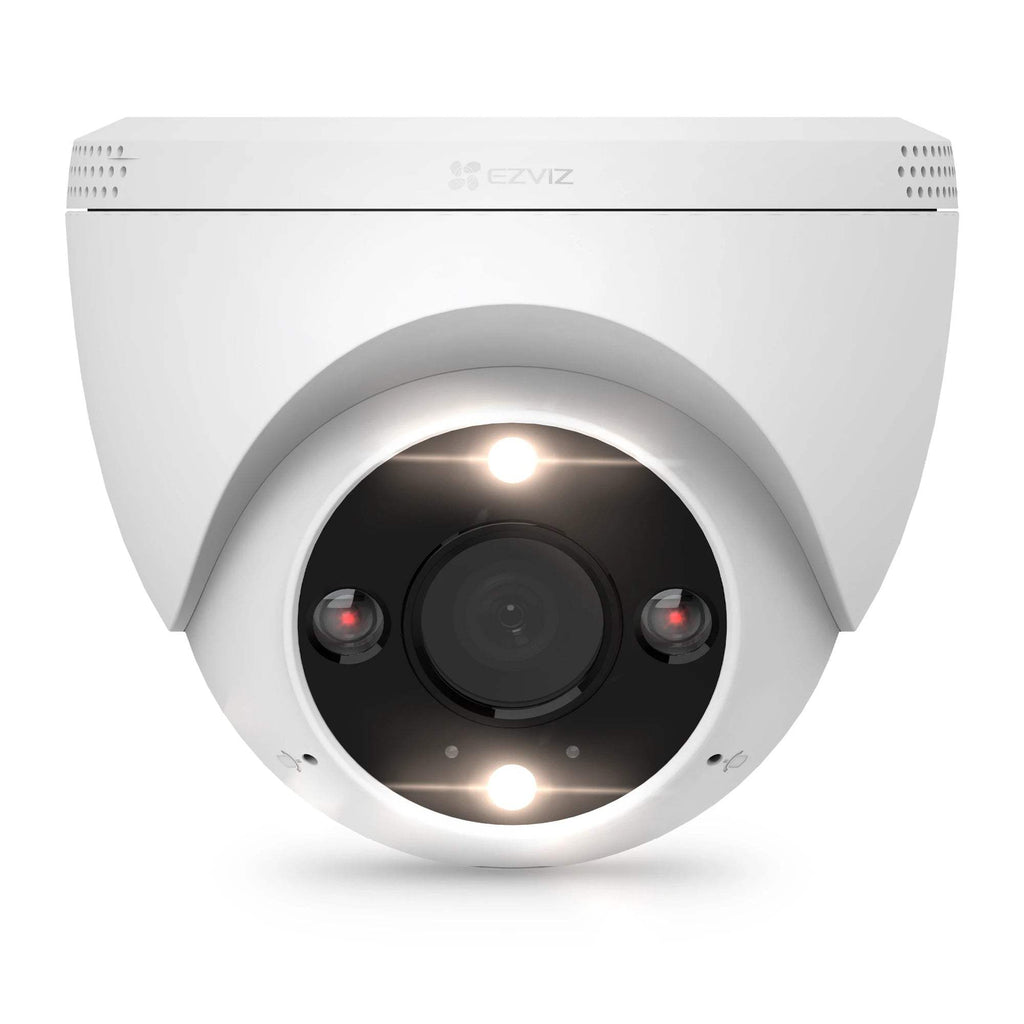

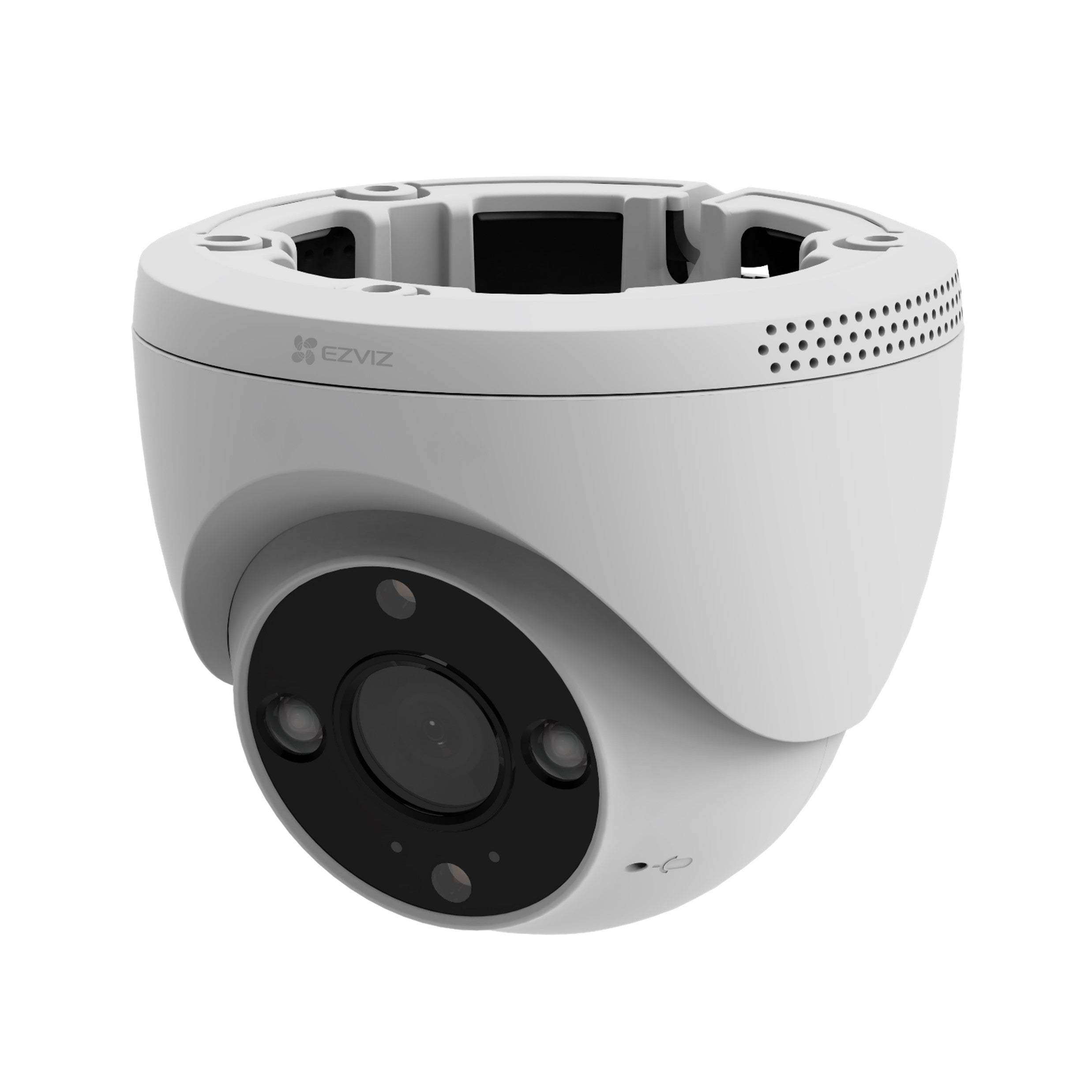

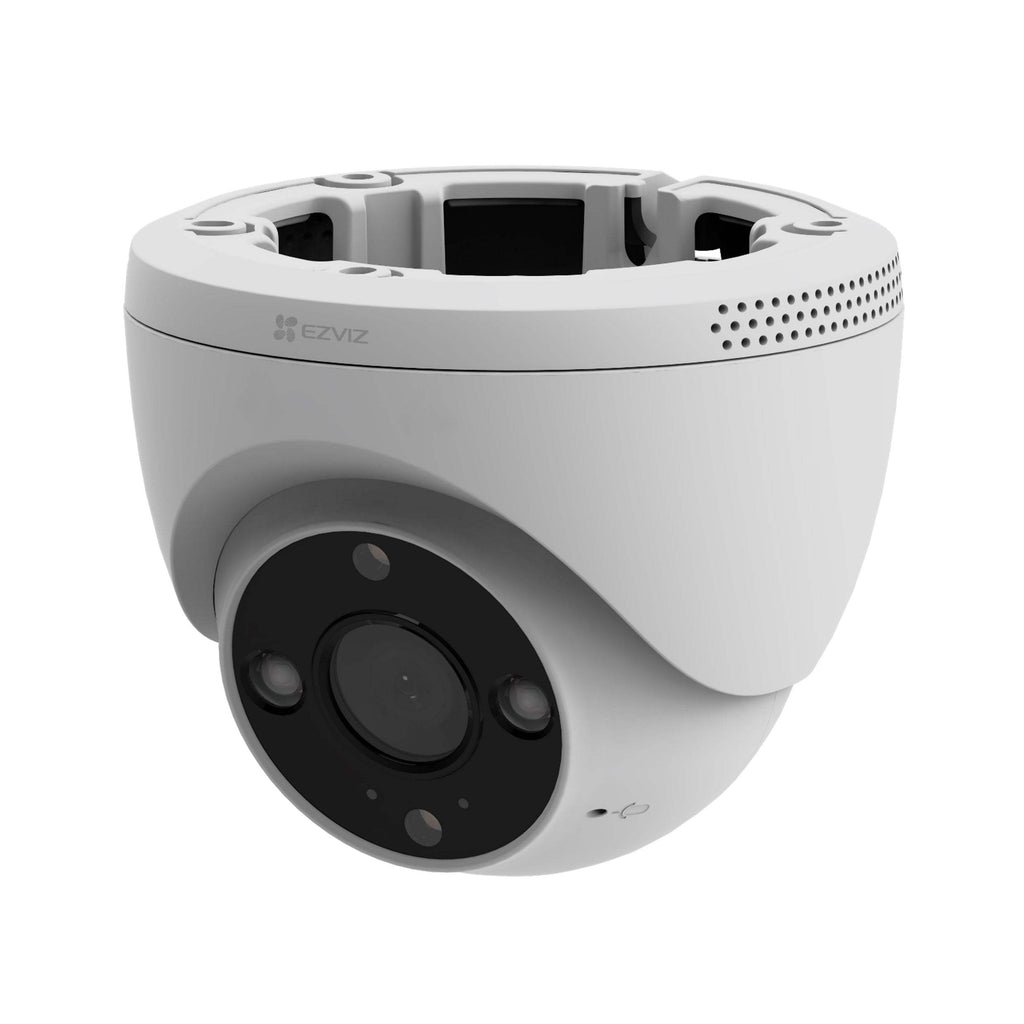

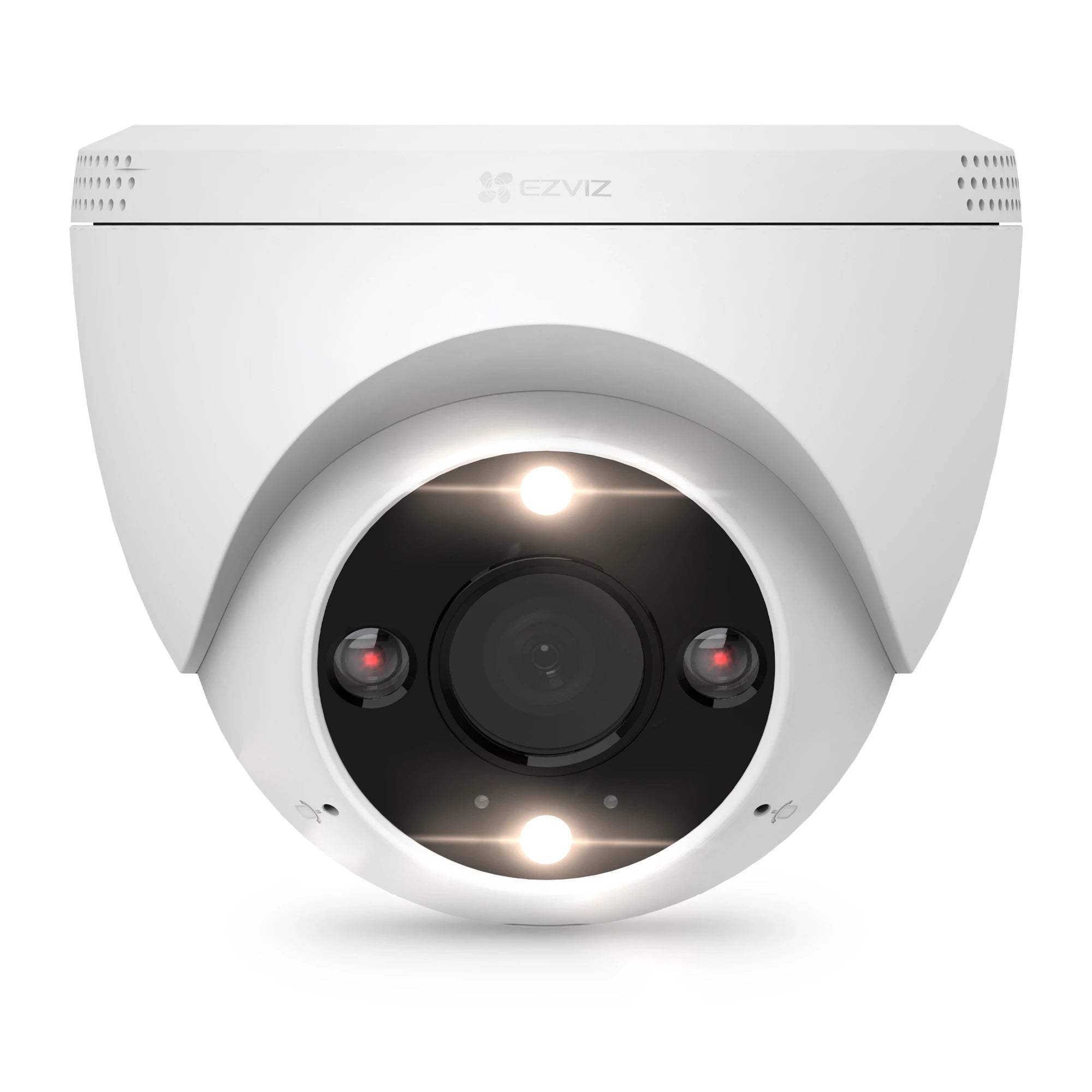

With the H4 PoE, a single cable is enough to supply the camera with uninterrupted power and a stable network. Simple to install but rich in its features, the camera monitors large areas with smart detections, and delivers stunning video with clear audio for all the details that matter. Safeguarding your home and business from day to night, the H4 PoE is versatile for various spaces and ready for any weather.
Thanks to the simple plug-and-play installation, the H4 PoE is supplied with power and connected to the Internet via a single Ethernet cable. It reduces dangling wires to tidy up your walls and space, while ensuring that your camera rarely goes offline due to dead batteries or lack of Wi-Fi signal.
Actively guards your home
Upon detection of intruders, the camera will set off a loud siren and flash spotlights for on-site deterrence.
| Specifications | |
|---|---|
| Model | CS-H4-R201-1H3EKFL |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens |
2.8 mm @ F1.6 Viewing angle: 106° (Horizontal), 122° (Diagonal) 4 mm @ F1.6 Viewing angle: 86° (Horizontal), 102° (Diagonal) |
| Lens Mount | M12 |
| Day / Night Switch | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | WDR |
| BLC | Supports |
| IR Night Vision Distance | Up to 30 m / 98 ft. |
| Video & Audio | |
| Max. Resolution | 2K (2304 × 1296) |
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard Adaptive bit rate. |
| Audio Bit Rate | Self-adaptive |
| Network | |
| Protocol | EZVIZ Cloud Proprietary |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm |
Motion detection AI-powered human shape detection AI-Powered vehicle shape detection |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| IP Grade | IP67 |
| Operating Conditions |
-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V/1A, Support PoE power supply |
| Power Consumption | Max. 8 W |
| Dimensions |
Product dimension: 106 × 106 × 90 mm (4.17 × 4.17 × 3.54 inch) Package dimension: 133 × 131 × 159 mm (5.24 × 5.16 × 6.26 inch) |
| Weight |
Net weight: 240 g (8.47 oz) Weight with package: 400 g (14.11 oz) |
| In the box | |
| In the box | - H4 PoE Camera |
| - Drill Template | |
| - Screw Kit | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / RoHS / REACH |
